| Part # | EF33H | |||||
|---|---|---|---|---|---|---|
| Description | 12V 25A 3PIN HEAVY DUTY FLASHER | |||||
| Type | Variable Load Electronic Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 1 to 12 Lamps 100 Hours Continuous Operation | |||||
| Specifications | FMVSS108, SAE J590 J945 & J1690 Class A | |||||
| Terminals | 3 | Rated Load Range | 0.27A to 25A Self-Adjusting to Lamp Draw | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 1 to 12 | |
| Pilot Circuit | Yes | Wattage | 300W | Life Hours | 600 Hours | |

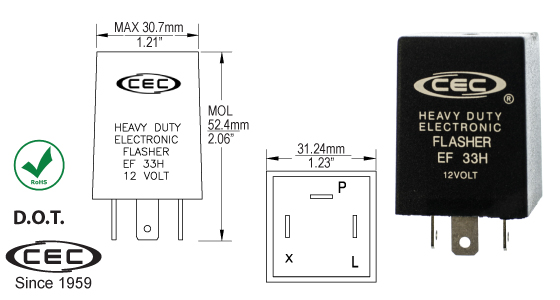

| Drawing Details |
 EF33H.pdf |
