EF32
Part # EF32
Description 12V 25A 2PIN ELECTRONIC FLASHER
Type Variable Load Electronic Flasher
Typical Load SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14.0 Volts 1 to 12 Lamps
Specifications FMVSS108, SAE J590b J945 & J1690
Terminals2Rated Load Range0.27A to 25A Self-Adjusting to Lamp DrawFlash Rate60 to 120 Flash Per Minute
StyleRound PlasticRated Voltage11 to 15 Volts D.C.Lamps Turn1 to 12
Pilot CircuitYesWattage300WLife Hours400 Hours

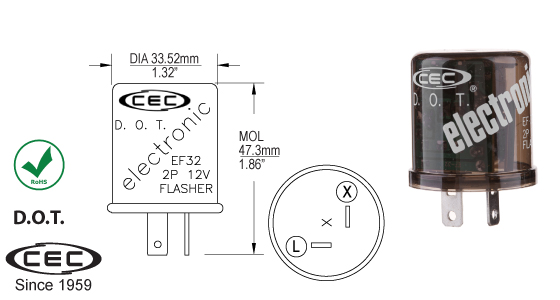

Drawing Details EF32.pdf New Announcement
