| Part # | TF577 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 12A 2PIN THERMAL FLASHER | |||||
| Type | Thermal Loud Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 2 to 6 Lamps SAE No. 1156 & 1 to 2 Lamps SAE No. 1895 In Any Combination | |||||
| Specifications | FMVSS108, SAE J590 & J945 | |||||
| Terminals | 2 | Rated Load Range | 0.27 Amps to 14 Amps | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Round Aluminum | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 to 3 | |
| Pilot Circuit | Yes | Wattage | 100W | Life Hours | 40 Hours | |

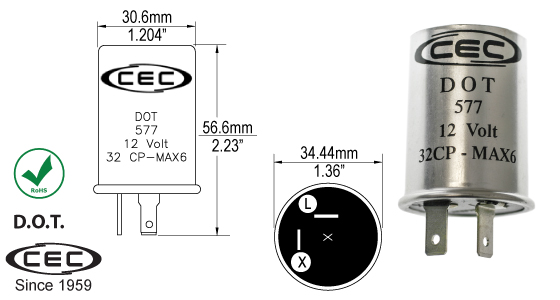

| Drawing Details |
 TF577.pdf |
