| Part # | TF575 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 16A 2PIN THERMAL FLASHER | |||||
| Type | 8 Lamp Capacity Thermal Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 2 to 8 Lamps SAE No. 1156 & 1 to 2 Lamps SAE No. 1895 | |||||
| Specifications | FMVSS108, SAE J590b & J945 | |||||
| Terminals | 2 | Rated Load Range | 0.27 Amps to 18 Amps | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Round Aluminum | Rated Voltage | 11 to 15 Volts | Lamps Turn | 2 to 3 | |
| Pilot Circuit | No | Wattage | 200W | Life Hours | 400 Hours | |

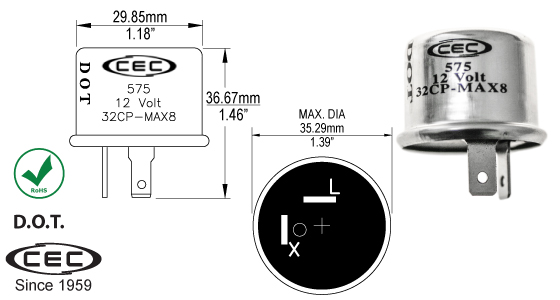

| Drawing Details |
 TF575.pdf |
