| Part # | ELM470 | |||||
|---|---|---|---|---|---|---|
| Description | 12.8V 2.1A 5 TERMINAL LIGHTING MODULE, NOT FOR LED | |||||
| Type | LED & Incandescent Compatible Lighting Module | |||||
| Typical Load | No. 1156 2.10 Amps. at 12.8 Volts No. 1895 0.27 Amps. at 14.0 Volts | |||||
| Specifications | FMVSS108, SAE J590b, J945 & J1960 | |||||
| Terminals | 5 | Rated Load Range | Fixed 2 No. 1156 Lamps for TS and 4 for Hazard. Not for LED | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 | |
| Pilot Circuit | Yes | Wattage | 162W | Life Hours | 1000 Hours | |

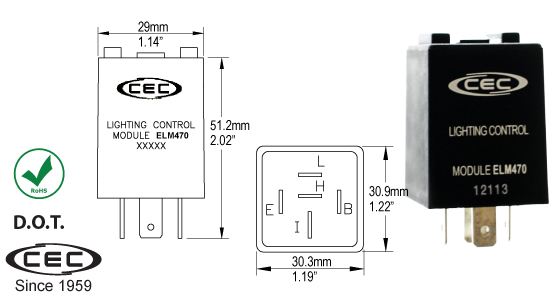

| Drawing Details |
 ELM470.pdf |
