| Part # | ELM468 | |||||
|---|---|---|---|---|---|---|
| Description | 12.8V 2.1A 9 TERMINAL LIGHTING MODULE, NOT FOR LED | |||||
| Type | Electronic Lighting Control Module | |||||
| Typical Load | SAE No. 1156 2.10 Amps. at 12.8 Volts | |||||
| Specifications | FMVSS108, SAE J1054 & J1690 | |||||
| Terminals | 9 | Rated Load Range | 1 to 6 SAE #1156 Lamps Per Side, cannot use with LED | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 | |
| Pilot Circuit | No | Wattage | 162W | Life Hours | 1000 Hours | |

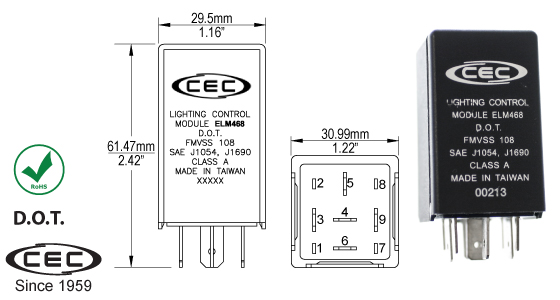

| Drawing Details |
 ELM468.pdf |
