| Part # | ELM449 | |||||
|---|---|---|---|---|---|---|
| Description | 12.8V 2.1A 8 TERMINAL LIGHTING MODULE, LED ONLY | |||||
| Type | LED Compatible Lighting Module | |||||
| Typical Load | No. 1156 2.10 Amps. at 12.8 Volts | |||||
| Specifications | FMVSS108, SAE J1054 & J1690 | |||||
| Terminals | 8 | Rated Load Range | LED only. 1 to 6 10W Lamps | Flash Rate | 60 to 120 Volts D.C. | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 | |
| Pilot Circuit | No | Wattage | 162W | Life Hours | 1000 Hours | |

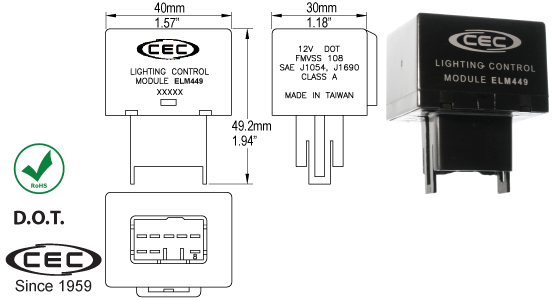

| Drawing Details |
 ELM449.pdf |
New Announcement |
ELM449.pdf
|
|||
