| Part # | EF47 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 35A 2PIN VARIABLE LOAD FLASHER | |||||
| Type | 35 Amp. High Load Capacity Incandescent Compatible | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 1 to 16 Lamps | |||||
| Specifications | FMVSS108, SAE J590b J945 & J1690 | |||||
| Terminals | 2 | Rated Load Range | 0.27A to 35A Self-Adjusting to Lamp Draw | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 1 to 16 | |
| Pilot Circuit | No | Wattage | 432W | Life Hours | 200 Hours | |

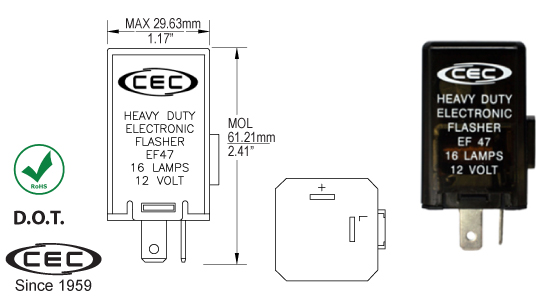

| Drawing Details |
 EF47.pdf |
New Announcement |
New Product Announcement EF47.pdf
|
|||
