| Part # | EF43 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 45A 3PIN VARIABLE LOAD FLASHER | |||||
| Type | 45 Amp. High Load Capacity Variable Load Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 1 to 20 Lamps | |||||
| Specifications | FMVSS108, SAE J590b J945 & J1690 | |||||
| Terminals | 3 | Rated Load Range | 0.27A to 45A Self-Adjusting to Lamp Draw | Flash Rate | 60 to 120 Flash Per Minute | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 1 to 20 | |
| Pilot Circuit | Yes | Wattage | 540W | Life Hours | 400 Hours | |

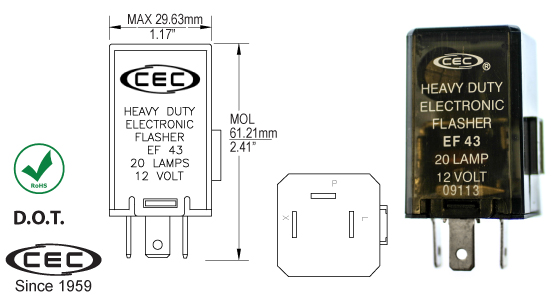

| Drawing Details |
 EF43.pdf |
