| Part # | EF34 | |||||
|---|---|---|---|---|---|---|
| Description | 12V 12A 3PIN ELECTRONIC FLASHER | |||||
| Type | Combination TS & Hazard Electronic Flasher | |||||
| Typical Load | SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 2 Lamps for TS & 6 Lamps for Hazard | |||||
| Specifications | FMVSS108, SAE J590b J945 & J1690 | |||||
| Terminals | 3 | Rated Load Range | 0.27Amps to 12 Amps | Flash Rate | 60 to 120 Volts D.C. | |
| Style | Square Plastic | Rated Voltage | 11 to 15 Volts D.C. | Lamps Turn | 2 | |
| Pilot Circuit | Yes | Wattage | 162W | Life Hours | 600 Hours | |

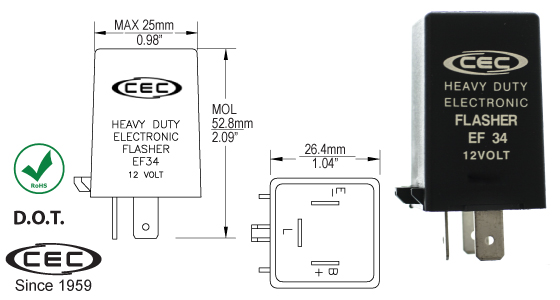

| Drawing Details |
 EF34.pdf |
