EF32SS
Part # EF32SS
Description 12V 25A 2PIN SOLID STATE LED FLASHER
Type Solid State LED & Incandescent Compatible Flasher
Typical Load SAE No. 1156 2.10 Amps at 12.8 Volts SAE No. 1895 0.27 Amps at 14 Volts 1 to 12 Lamps or 2 LED Lamps In Any Combination at 25 Amps Total
Specifications FMVSS108, SAE J590b J945 & J1690
Terminals2Rated Load Range20mA to 25A Self-Adjusting to Lamp DrawFlash Rate60 to 120 Flash Per Minute
StyleSquare PlasticRated Voltage11 to 15 Volts D.C.Lamps Turn1 to 12
Pilot CircuitNoWattage300WLife Hours600 Hours

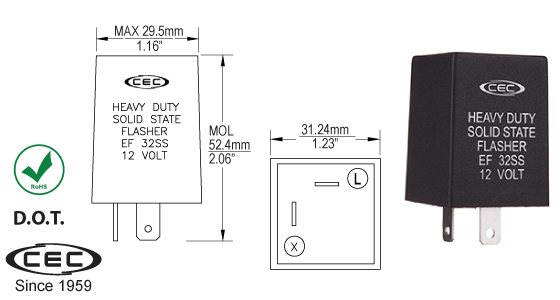

Drawing Details EF32SS.pdf New Announcement EF32SS.pdf
