CIRCUIT BREAKER CB165-25

Go Back
Part # CB165-25
Description Metal Case Plug-In Blade Terminal Type I 25A
ConnectorBladesAmps25
Nuts/WashersNoVolts6 to 12 Volts
Case TypeMetalCase Size (in)1.28L X 0.62H X 0.82W inches
BracketNoCase Size (mm)32.54L X 15.75H X 20.83W mm
Bracket HolesN/AComplianceSAE Standard J533
Notes1.08 inches on center

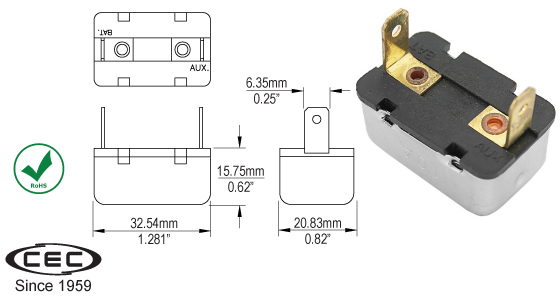

Drawing Details
