| Part # |
CB135-20 |
| Description |
HD Metal Stud Terminal Type I w/Length Wise Mtng Bracket 20A |
| Connector | Metal Studs | Amps | 20 |
|---|
| Nuts/Washers | Nut/Star Washer Combined (2 Places) | Volts | 6 to 12 Volts |
|---|
| Case Type | Metal | Case Size (in) | 1.24L X 0.67H X 0.82W inches |
|---|
| Bracket | In Line Bracket | Case Size (mm) | 31.40L X 17.02H X 20.60W mm |
|---|
| Bracket Holes | 0.22 inches diameter. 1.56 inches on center. | Compliance | SAE Standard J553 |
|---|
| Notes | Two 10-32 Stud Terminals at different heights: 0.58" and 0.71" |
|---|

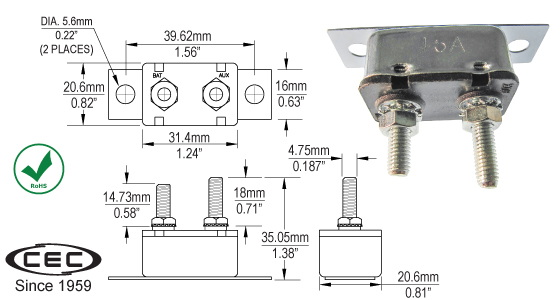

| Drawing Details |
|
|---|
