| Part # |
CB133-25 |
| Description |
Plastic Case Metal Stud Type I w/Cross Wise Mtng Bracket 25A |
| Connector | Plastic Stud | Amps | 25 |
|---|
| Nuts/Washers | Hex Nuts and Lock Washers supplied | Volts | 6 to 12 Volts |
|---|
| Case Type | Plastic | Case Size (in) | 1.259L X 0.652H X 0.838W inches |
|---|
| Bracket | Crosswise to Breaker Bod | Case Size (mm) | 31.99L X 16.56H X 21.29W mm |
|---|
| Bracket Holes | 0.212 inches diameter. 1.56 inches on center. | Compliance | SAE Standard J553 |
|---|
| Notes | Two 10-2 Stud Terminals at different heights: 0.625" & 0.718" |
|---|

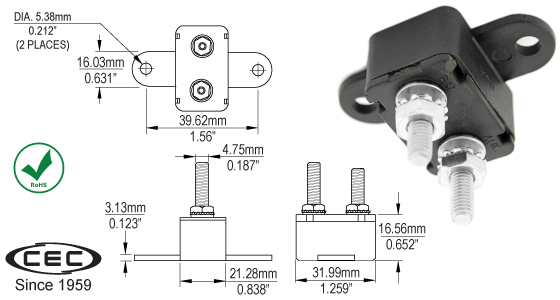

| Drawing Details |
|
|---|
