| Part # |
CB130-25 |
| Description |
HD Metal Stud Terminals Type I w/Cross Wise Mtng Bracket 25A |
| Connector | Metal Studs | Amps | 25 |
|---|
| Nuts/Washers | Nut/Star Washer Combined (2 Places) | Volts | 6 to 12 Volts |
|---|
| Case Type | Metal | Case Size (in) | 1.26L X 0.67H X 0.82W inches |
|---|
| Bracket | Crosswise to Breaker Bod | Case Size (mm) | 32.00L X 16.98H X 20.83W mm |
|---|
| Bracket Holes | 0.212 inches diameter. 1.25 inches on center. | Compliance | SAE Standard J553 |
|---|
| Notes | Two 10-32 stud terminals at 0.67 inches |
|---|

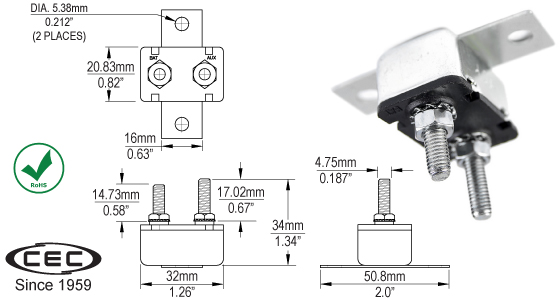

| Drawing Details |
|
|---|
