| Part # | CB129-20 | |||
|---|---|---|---|---|
| Description | HD Metal Stud Terminals Type I w/Bracket 20A | |||
| Connector | Metal Studs | Amps | 20 | |
| Nuts/Washers | Nut/Star Washer Combined (2 Places) | Volts | 6 to 12 Votls | |
| Case Type | Metal Narrow Case Bo | Case Size (in) | 1.06L X 0.765H X 0.40W inches | |
| Bracket | Special | Case Size (mm) | 26.90L X 19.43H X 10.20W mm | |
| Bracket Holes | 0.212 inch diameter. 1.0 inch on center. | Compliance | SAE Standard J553 | |
| Notes | Two 10-32 stud terminals at 0.56 inches | |||

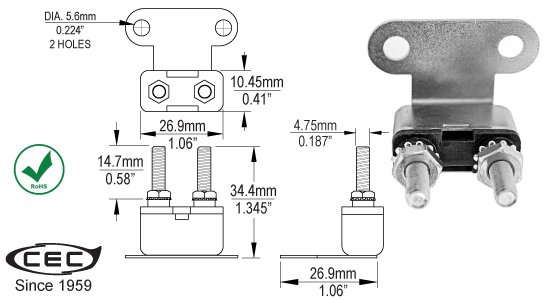

| Drawing Details |
 CB129.pdf |
|||
