| Part # | CB120-35 | |||
|---|---|---|---|---|
| Description | Fuse Clip Mounting Type II 35A | |||
| Connector | Fuse Clip | Amps | 35 | |
| Nuts/Washers | No | Volts | 6 to 12 Volts | |
| Case Type | Plastic | Case Size (in) | 1.26L X 0.71H X 0.51W inches | |
| Bracket | No | Case Size (mm) | 32.07L X 17.87H X 13.02W mm | |
| Bracket Holes | 4.5mm diameter | Compliance | SAE Standard J553 | |
| Notes | Fits all standard glass fuse clips - 3AG, AGC, and SFE | |||

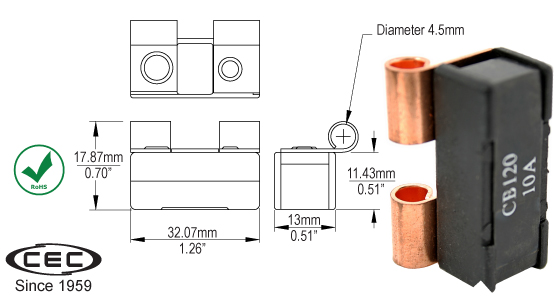

| Drawing Details |
 CB120.pdf |
|||
